Drilling Machine
We are engaged in manufacturing and supplying a wide
range of Drilling Machines. These Drilling Machine are available with us in
various models that include All geared radial drilling machine, semi geared
radial drilling machine, column drilling machine, and gang drilling machine.
Our machines are known for their superior performance, low maintenance and
long working life, and reasonable rates.

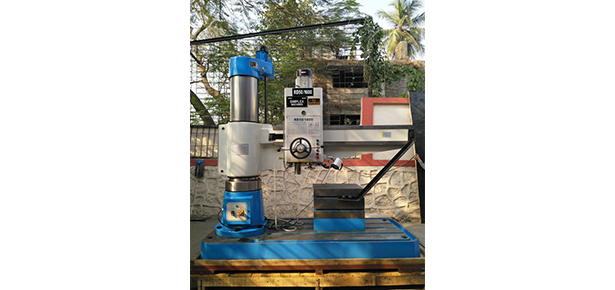

All Geared Radial Drilling Machine
We offer All Geared Radial Drilling Machine to our
clients. Our machines are fabricated with high grade raw material and
designed by experts as per industry standards. These machines find their
application in various industries. These machines are appreciated by clients
for their unique features that include:
- Robust Construction
- Resistant to Corrosion
- Hassle Free Operation
- High Withstanding Power
- Energy Efficient
- Work in Adverse Conditions
| Technical
Specifications |
| Drill Head |
SDM-40B |
SDM-40C |
SDM-50B |
SDM-50C |
SDM-65B |
SDM-75B |
SDM-85B |
| Drilling Capacity (In steel/ cast iron) |
40/50 |
40/50 |
50/60 |
50/60 |
65/75 |
75/85 |
85/95 |
| Drilling Depth |
180 |
180 |
225 |
250 |
325 |
355 |
400 |
| Taper Spindle Nose Socket |
MT-4 |
MT-4 |
MT-5 |
MT-5 |
MT-5 |
MT-6 |
MT-6 |
| No. of Spindle Speeds/ Range (RPM) |
6
(55-665) |
12
(56-1000) |
9
(45-750) |
12
(45-1000) |
12
(18-810) |
12
(18-810) |
12
(16-1250) |
| No's of Spindle Feeds/ Range (mm/rev.) |
3
(0.1-0.2) |
3
(0.1-0.2) |
3
0.1-0.2) |
6
(0.125-1.25) |
6
(0.125-1.25) |
6
(0.125-1.25) |
6
(.08-1.0) |
| Drill Power |
1.5 kw |
2.2 kw |
2.2 kw |
3.7 kw |
3.7 kw |
5.5 kw |
7.5 kw |
| CAPACITY |
| Drilling Radius Max. |
1050 |
1050 |
1100 |
1300 |
1700 |
1900 |
2200 |
| Drilling Radius Min. |
375 |
375 |
450 |
450 |
500 |
600 |
650 |
| Drilling Head Traverse |
675 |
675 |
650 |
850 |
1200 |
1300 |
1550 |
| Distance Base Plate to Spindle Max. |
1000 |
1000 |
1300 |
1300 |
1500 |
1750 |
1800 |
| Distance Base Plate to Spindle Min. |
225 |
225 |
225 |
325 |
300 |
400 |
550 |
| Diameter of Column Sleeve |
255 |
255 |
310 |
310 |
355 |
405 |
450 |
| Working Surface of Base Plate |
900*680 |
900*680 |
920*830 |
1120*830 |
1500*1020 |
1850*1160 |
2130*1300 |
| DIMENSIONS OF BASE PLATE |
| Length*Width*Height |
1480*
700*200 |
1480
*700*200 |
1585
*850*200 |
1800
*850*200 |
2265
*1040*225 |
2650
*1180*225 |
3150
*1300*250 |
| Arm Elevator Motor |
0.75 kw |
0.75 kw |
1.5 kw |
1.5 kw |
2.2 kw |
3.7 kw |
3.7 kw |
| Standard Box Table |
400
*350*350 |
550
*420*420 |
550
*420*420 |
550
*420*420 |
600
*500*500 |
600
*500*500 |
1000
*750*500 |
| Approx. Weight of Machine |
1700 Kg. |
1850 kg. |
3000 kg |
3500 kg |
4800 kg |
6500 kg |
10,000 kg |
Standard Accessories
- Box Table
- Limit Switches
- Electric Motors
- Coolant Pump
- Electrical Control Panel
|
 |
Optional Accessories
- Tilting Table
- Machine Vice
- Boring Attachment
- Tapping Attachment
- Electro Hydraulic Clamping
|
|
|

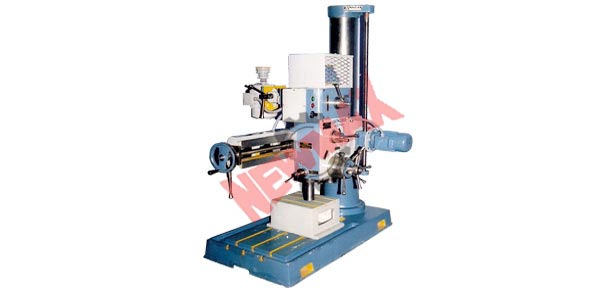

Semi Geared Radial Drilling Machine
Semi Geared Radial Drilling Machine offered by us is
highly appreciated in market for superior performance. We manufacture these
machines with good quality raw material. Further, these machines are
designed by experts using latest technology. Semi Geared Radial Drill
Machine ensure high durability, tensile strength and resistivity to adverse
conditions. These Semi Geared Radial Drill Machine are available with us
with drilling capacity of 40 mm, 50 mm & 60 mm.
| Technical
Specifications |
| Model No |
NSR 40 |
NSR 50 |
NSR 60 |
| Drilling Capacity |
40mm |
50mm |
60mm |
| Spindle Nose |
Mt-4 |
Mt-4 |
Mt-5 |
| Spindle RPM |
85-550 |
60-650 |
60-650 |
| Drilling Radius Min / Max |
300 / 850 |
325 / 1050 |
350 / 1200 |
| Vertical Travel of Arm |
900 |
1100 |
1250 |
| Main / Elevating Motor |
2hp & 1hp |
3hp & 1hp |
5hp & 2hp |
Standard Accessories
- Electric Motors
- Electrical Control Panel
|
|
|
|
|

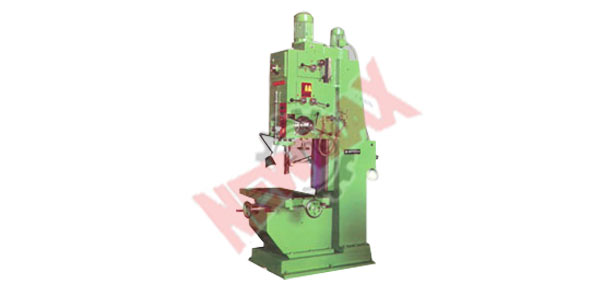

Column Drilling Machine
We offer supreme quality Column Drilling Machines to
our clients. These Column Drilling Machines with their massive and rigid
construction, ease of operation and control, fulfill a definite need in the
field of drilling. These machines are appreciated for special finish, large
output and good tool life. These machines are widely used in the field of
automotive, electrical, construction, heavy and light engineering industry.
These machines are tested for accuracy as per industry standard before
dispatching to clients.
| Technical
Specifications |
| Drill Head |
WCD-40 |
WCD-50 |
| Drilling Capacity In Steel |
40MM |
50MM |
| Drilling Capacity In C.I. Casting |
50MM |
60MM |
| Taper In Spindle |
MT-4 |
MT-5 |
| Spindle Traverse |
200MM |
250MM |
| Vertical Adjustment of Spindle Head |
450MM |
500MM |
| Distance Between Spindle and Column |
400MM |
400MM |
| Number of Spindle Speeds and Range |
12(56-1000RPM) |
12(45-1000RPM) |
| Number of Spindle Feeds and Range |
3(0.1-0.3MM/REV.) |
6(.12-1.25MM/REV.) |
| Power of Main Motor |
3H.P. |
5H.P. |
| Power of Elevating Motor |
2H.P. |
2H.P. |
| Motor Suitable for Coolant |
0.125 H.P. |
0.125H.P. |
| Working Surface of the Table |
500X1000MM |
| Longitudinal Movement of the Table (Manual) |
500MM |
| CROSS MOVEMENT OF THE TABLE (MANUAL) |
300MM |
| NO. OF T-SLOTS/SIZE (WIDTH) |
3NOS./18MM |
| Overall Size of the Base |
1170X770MM |
| No. of T-Slots |
3 NOS./19.2MM |
| Max. Distance Betwenn Spindle and Base |
1100MM 1200MM |
| Space Occuped LXBXH (Approx) |
1600X850X3000MM |
| Net Weight (Approx) |
2350KGS 2700KGS |
| Cross Weight |
2700KGS 3100KGS |
Standard Accessories
- Two Electric Motors, One Electric Coolant Pump
- Complete With Fitting, Machine Lamp, Panel Board
- For Electrical Controls
|
|
|
|
|

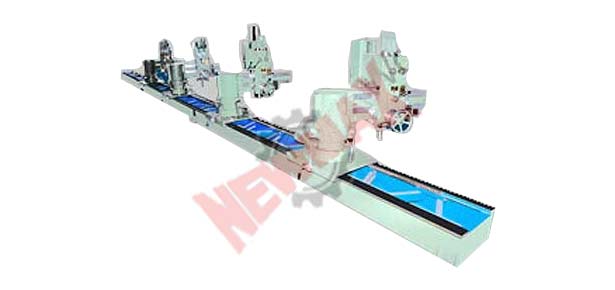

Gang Drilling Machine
We offer an entire range of Gang Drilling Machine to
our clients. Gang Drilling Machine has several work heads positioned over a
single table. This type of drill machine is used when successive operations
are to be done. Gang Drilling Machine are suitable for auto-parts
manufacturers, maintenance & fabrication units and production workshops
and tool rooms. These machines are highly appreciated for their superior
performance and durability.

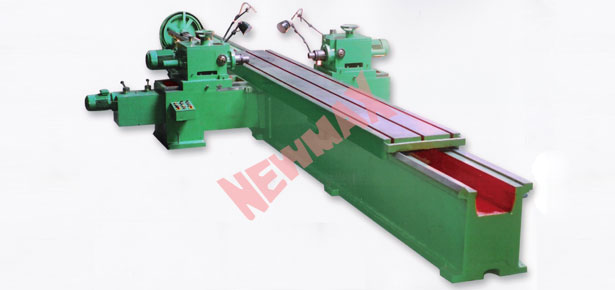

CMS Crossing Drilling Machine
CMS Crossing Drilling Machine that is made by using premium raw materials. This type of Drilling Machine is used for railway work purposes like drilling, cutting and so on.
